product details / scope of delivery
Description:
- Quick and accurate physical axle damping testing
- Evaluation based on Lehr's damping ratio
- Automatic measurement of axle and vehicle weight with transfer of weight to brake tester (optional)
- Fully-automatic test sequence launched once plate load of is more than 60 kg on both sides
- Frequency-controlled plate excitation by electric motors to determine the maximum vibration amplitude, with subsequent evaluation of axle damping
- Noise search function for pinpointing interference noises in the vehicle directly on the test stand (optional)

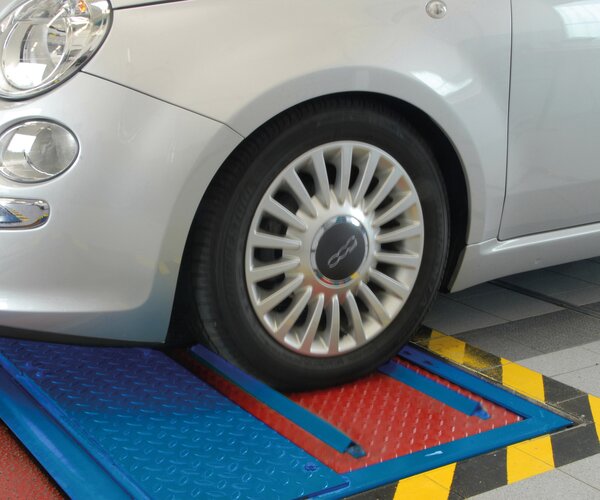

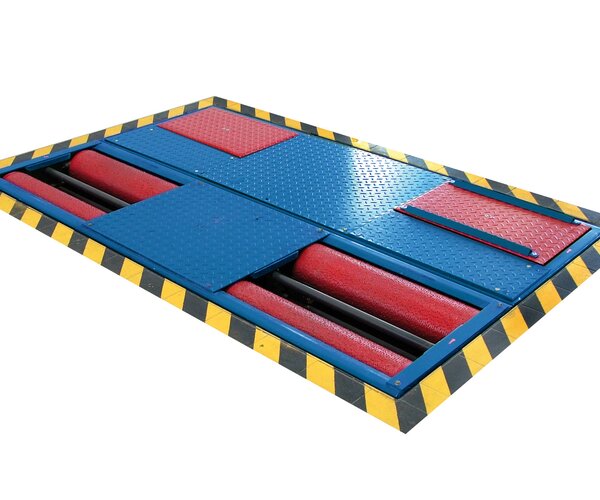

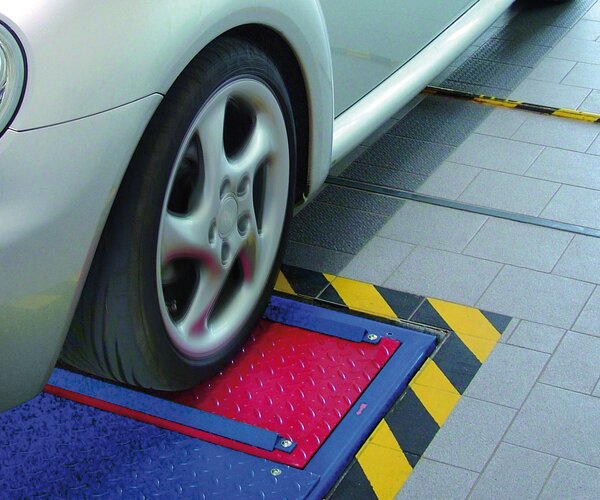

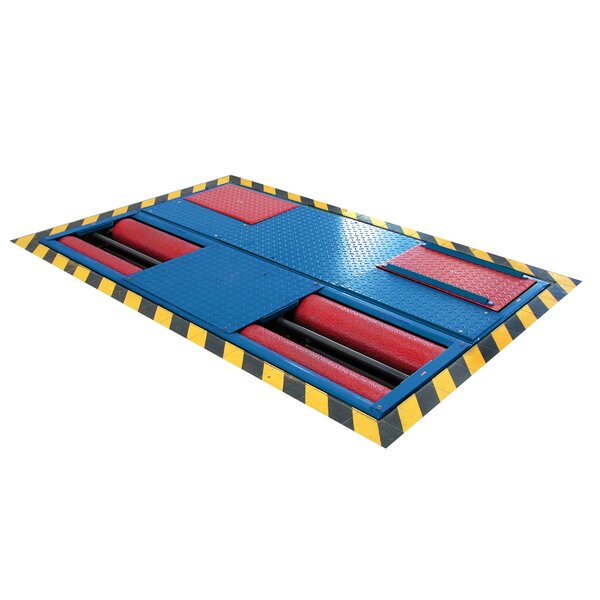

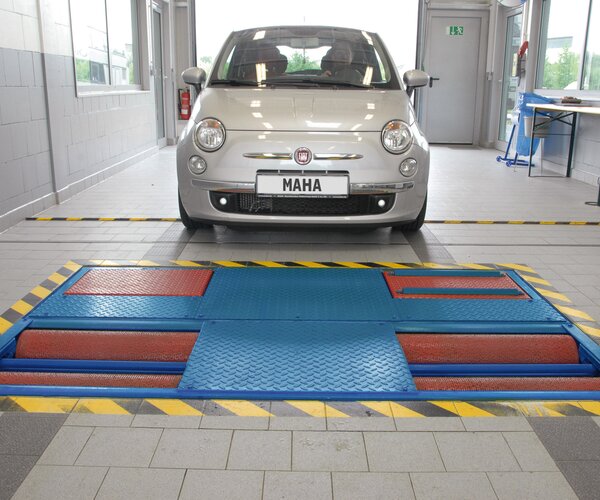

- Floor unit as self-supporting framework

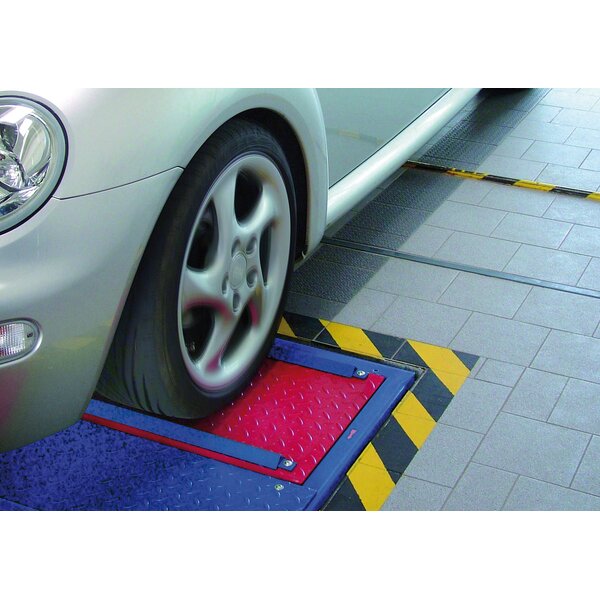

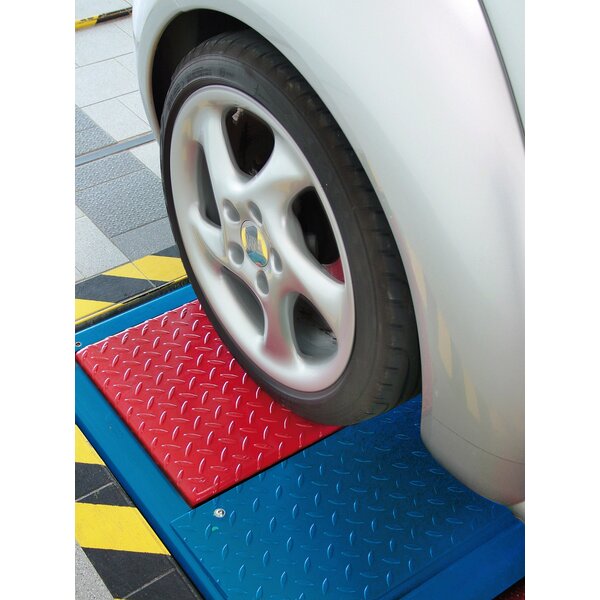

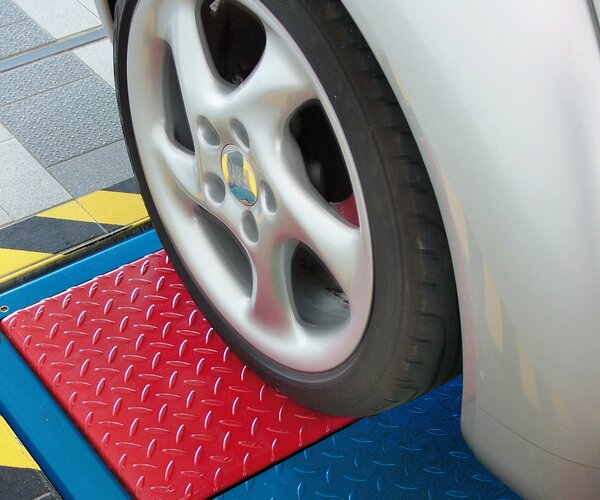

- Parallelogram-guided test plates and therefore no fixed wheel testing point necessary

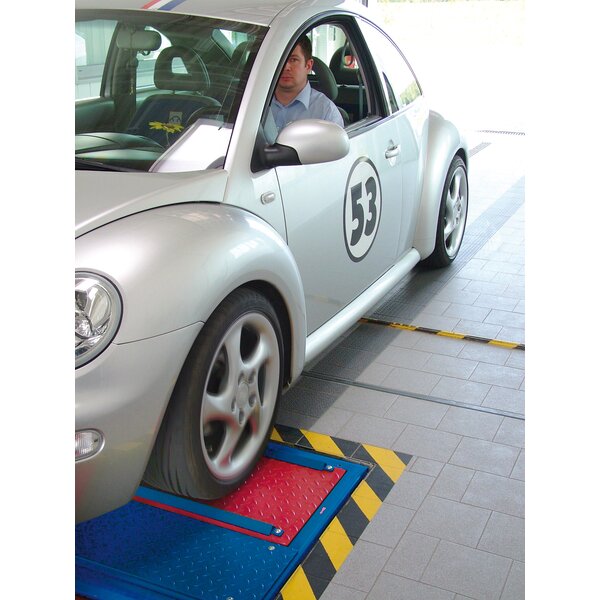

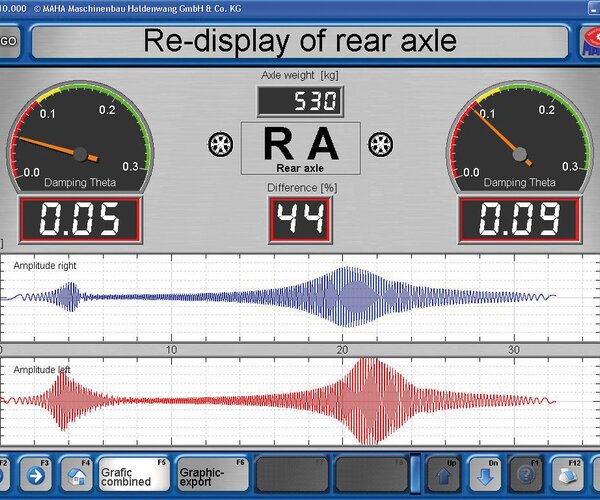

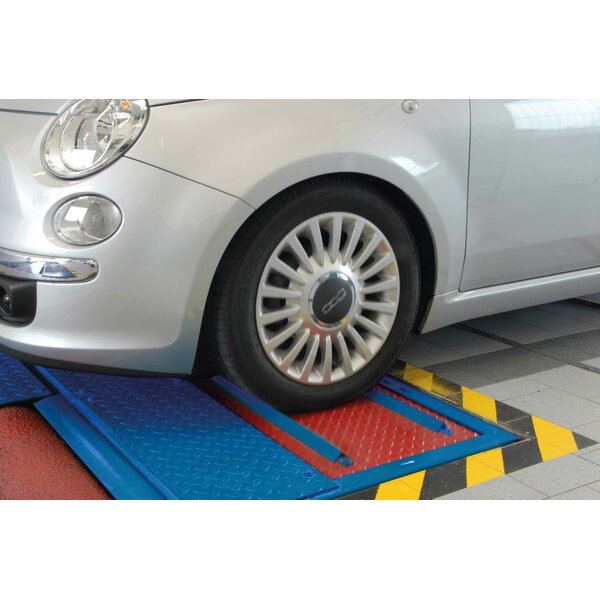

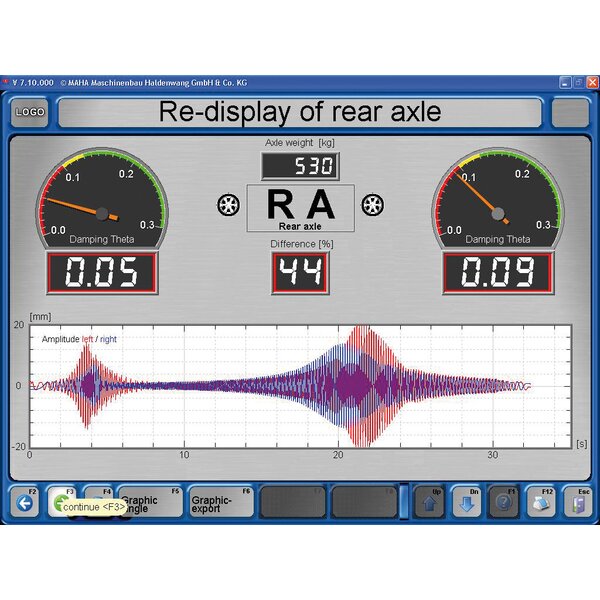

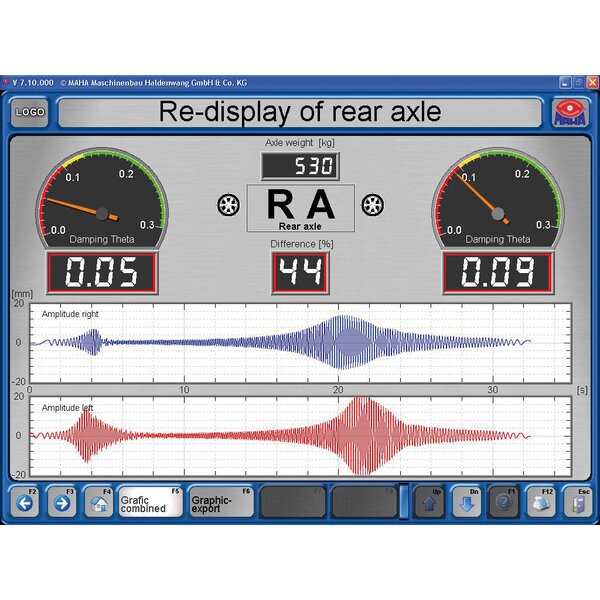

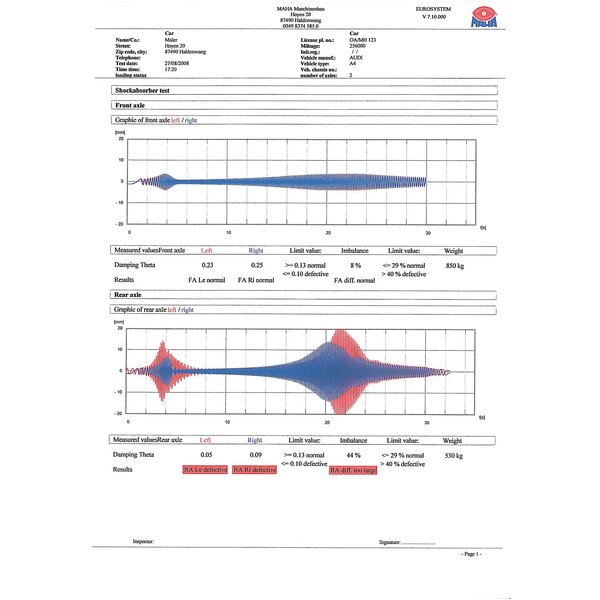

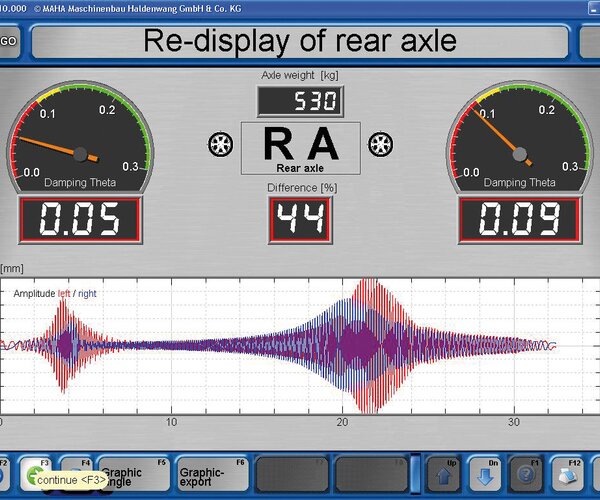

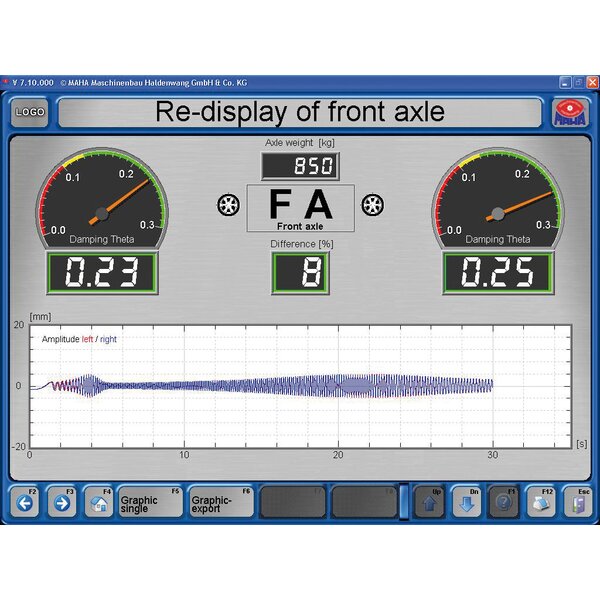

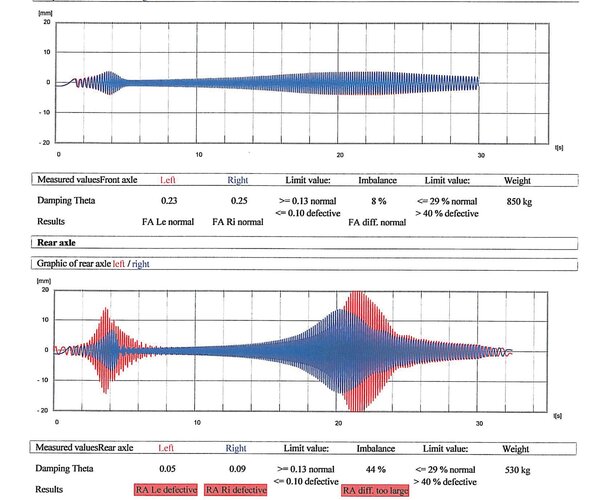

- In conjunction with EUROSYSTEM: display on PC screen with evaluation by Lehr's damping ratio D with deviation display and graphic representation
- In conjunction with LON brake testers: representation on LON analogue displays with evaluation by Lehr's damping ratio D
- Varnished with high-quality powder coating: Anthracite Grey, RAL 7016
Standard delivery:
- MSD 3000 EURO Floor Unit Axle Damping Tester
- Pre-configured for connection to EUROSYSTEM or LON test line
- Pre-configured for stand-alone use (requires MCD 2000 communication desk with electronics)
Technical Data
Technical Data:
| Axle load (test capacity) | 2200 kg |
| Axle load (support capacity) | 2500 kg |
| Min. track | 880 mm |
| Max. track | 2200 mm |
| Drive power | 2 × 1.1 kW |
| Excitation lift | 6.5 mm |
| Excitation frequency (regulated) | 2 - 10 Hz |
| Maximum plate lift | 70 mm |
| Measurement display | |
| (damping ratio D ) | 0.02 - 0.3 (without units) |
| gG fuse | 16 A |
| Power supply | 1/N/PE 230 V 50/60 Hz |
| Floor unit dimensions (H x W x L) | 280 x 800 x 2320 mm |
