C_MBT C 13.0 W280 VP 410199

product details / scope of delivery

Description:
Digital roller brake tester light trucks, vans and cars
up to 13 t axle load with 2 x 7.5 kW drive motors

Particularly suitable for a very wide range of
different testable vehicles at a moderate vehicle throughput

• Undivided design as standard and high flexibility in terms of the scope of application
• Multifunctional use thanks to the optional two test speeds and the wide range of testable vehicles

• Features:
  • Real slip monitoring and automatic start-up delay as standard
  • Tyre-saving thanks to integrated automatic start-up monitoring
  • Automatic slip switch-off with pointer stop and automatic restart
  • Static exit aid for safe and convenient exit, even when the test stand is switched off
  • Automatic switch-off after vehicle exit
  • Electronic, temperature compensated (neutral) strain gauge system
  • Internationally recognised TÜV report in accordance with VkBl 149/2021 (Germany)

• Further product advantages - for details see Sales Handbook:
  • Sturdy and solid design
  • Interface module in the floor assembly
  • Secure and digital data transmission
  • Modular control box set-up
  • Multi-flexible display possibilities
  • Simple start-up
  • Simple maintenance and service
  • Safe operation
  • Optimised calibration and adjustment
  • Integrated and expandable software and/or interfaces

Configuration:

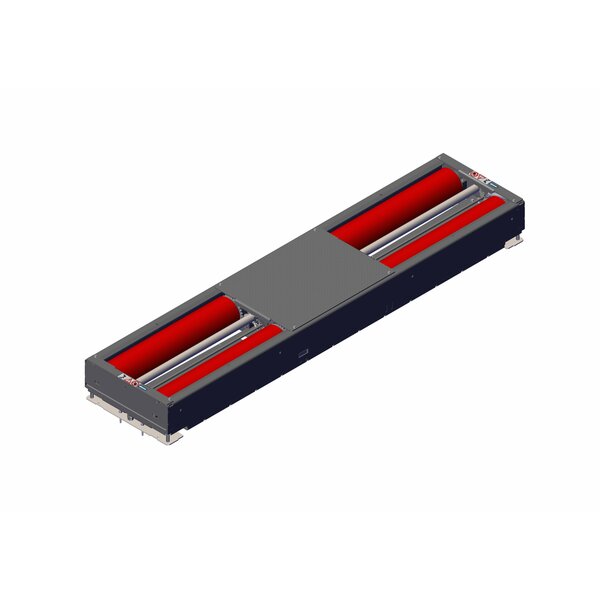

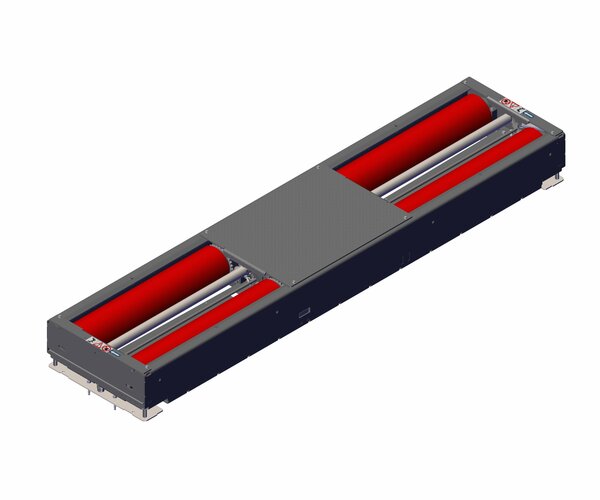

• Roller set version C 13.0 W280
• Self-supporting, undivided roller set (Compact)
• High-quality powder coating: anthracite grey, RAL 7016

Scope of delivery:

• Control box with integrated control unit
• Roller set C_MBT C 13.0 W280 with integrated interface module
• Pluggable cable harness 12 m
