C_MBT M 18.0 W301 VP 410212

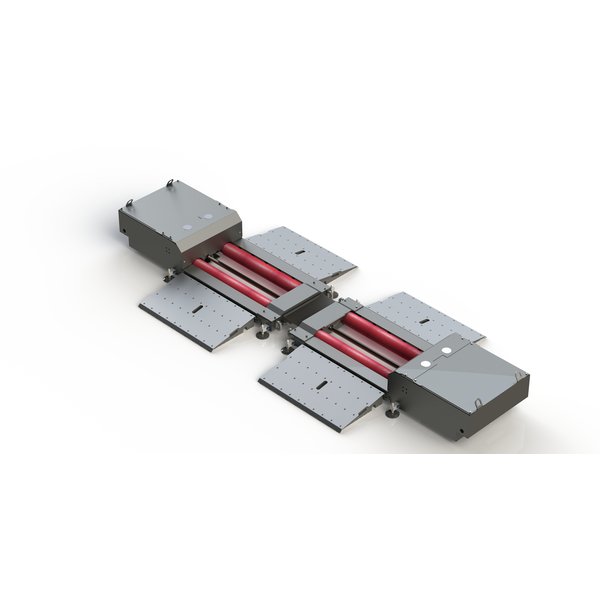

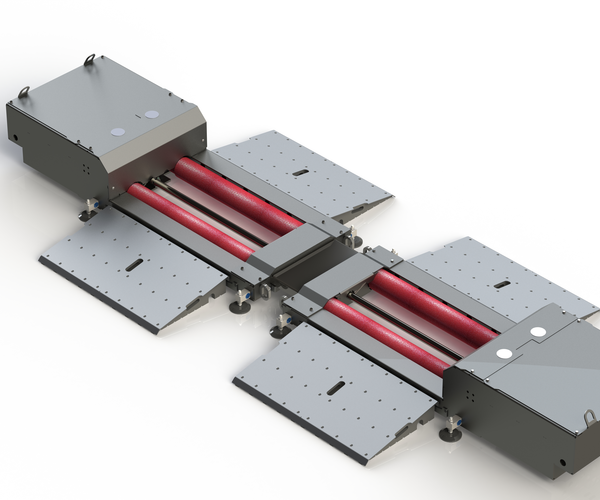

This digital above-ground roller brake tester is the ideal solution for workshops, testing stations and fleet operators who value flexibility, easy installation and precise results.

Thanks to its above-ground design without the need for foundations, its split construction allows for quick commissioning – without complex building work. With its powerful 9 kW drive motors and low drive-over height, transporters and trucks can be tested efficiently and accurately. Its compact design saves valuable space, making it the perfect choice for the modern workshop.

product details / scope of delivery

Description:
Digital above-floor roller brake tester for vans and trucks
up to 18 t axle load with 2 x 9 kW drive motors

Particularly suitable for above-floor operation with
low drive-over height and without foundation work

  • Features:
    • Real slip monitoring and automatic start-up delay as standard
    • Tyre-saving thanks to integrated automatic start-up monitoring
    • Automatic slip switch-off with pointer stop and automatic restart
    • Static exit aid for safe and convenient exit, even when the test stand is switched off
    • Automatic switch-off after vehicle exit
    • Electronic, temperature compensated (neutral) strain gauge system
    • Internationally recognised TÜV report in accordance with VkBl 149/2021 (Germany)


  • Further product advantages - for details see Sales Handbook:
    • Sturdy and solid design
    • Interface module in the floor assembly
    • Secure and digital data transmission
    • Modular control box set-up
    • Multi-flexible display possibilities
    • Simple start-up
    • Simple maintenance and service
    • Safe operation
    • Optimised calibration and adjustment
    • Integrated and expandable software and/or interfaces


Configuration:

  • Split design as standard for above-floor use without angle iron frame
  • Dimensions offer optimum testing opportunities for standard vehicles in the van and truck sector
  • High-quality powder coating: anthracite grey, RAL 7016


(Product has no approval in accordance with VkBl. 149/2021
for design reasons; therefore, it is not approved for use
in connection with the PTI in Germany)


Scope of delivery:

  • Compact control cabinet for wall mounting with integrated control unit
  • Roller set M 18.0 W301 with integrated interface module


Note:
Cable harness not included. Cable harness 20 m must be ordered
(VZ 935351) or supplied by customer.
The use of the C_MCD universal console (VP 186054) or large
control cabinet (VZ 955215) is recommended for free-standing
or mobile installation of the above-floor test stand.

Downloads

Sales documents

Technical Datasheet
Technical Datasheet C_MBT M 18.0 W301
DE EN
Technical Datasheet (Printable version) C_MBT M 18.0 W301
DE EN

Technical Data

Technical data:

Axle load (traversable)18000 kg
Track min.720 mm
Track max.3010 mm
Drive power2 x 9 kW
Test speed2.2 km/h
Measured value display0-45.5 kN
Technical brake force limit30 kN
Roller length1150 mm
Roller diameter150 mm
Roller axle distance450 mm
Drive-over height196 mm
gG Fuse63 A
Power supply3/N/PE 400 V 50 Hz
Dim. of roller set half (L x W x H)2500 x 900 x 540 mm
