product details / scope of delivery
Description:
Digital roller brake tester for vans and trucks
up to 18 t axle load with 2 x 11 kW drive motors
Particularly suitable as stand-alone tester
or as part of truck reception and diagnostic test lanes
Configuration:

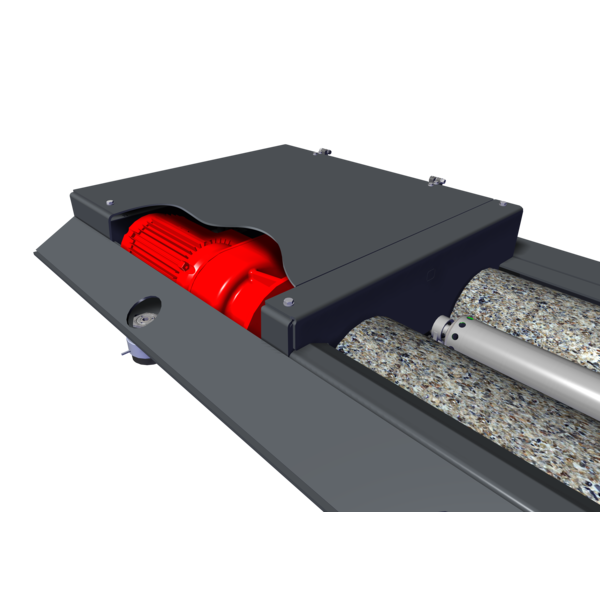

- Split design as standard, lateral motor arrangement for pit and foundation installation or for above-floor use
- Dimensions offer optimum testing opportunities for standard vehicles in the van and truck sector
- Large test roller diameter of 265 mm specially for the commercial vehicle sector
- High-quality powder coating: anthracite grey, RAL 7016
Scope of delivery:
- Control box with integrated control unit
- Roller set S 18.0 R 115 MS with integrated interface module
Note:
Cable harness not included in scope of delivery.
(Cable harness 20 m (VZ 935351) or required on site)
Downloads
Sales documents
| Brochures | ||
|---|---|---|
|
Brochure MAHA CONNECT
|
||
| Technical Datasheet | ||
|---|---|---|
|
Technical Datasheet C_MBT S 18.0 R115 MS
|
||
|
Technical Datasheet (Printable version) C_MBT S 18.0 R115 MS
|
||
Technical documentation
| Operating Instructions | ||
|---|---|---|
|
Operating Instructions CONNECT SERIES (Complete version)
|
||
Technical Data
Technical data:
| Axle load (traversable) | 18000 kg |
| Drive power | 2 x 11 kW |
| Test speed | 3 km/h |
| Measured value display | 0-45.5 kN |
| Roller diameter | 265 mm |
| Roller axle distance | 475 mm |
| Roller length | 1150 mm |
| gG Fuse | 63 A |
| Power supply | 3/N/PE 400 V 50 Hz |
| Dim. of roller set half (L x W x H) | 2235 x 1145 x 405 mm |
