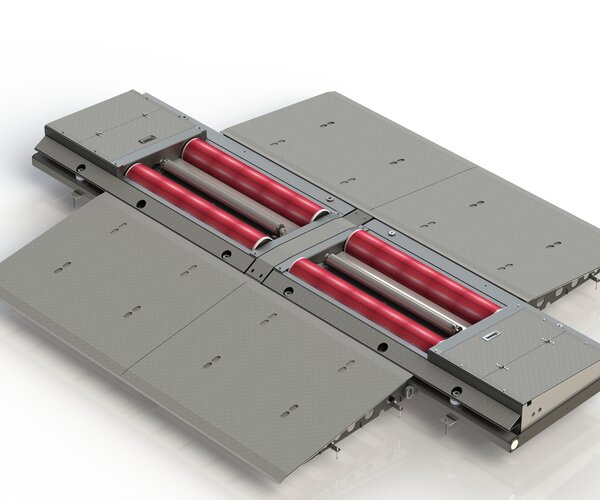

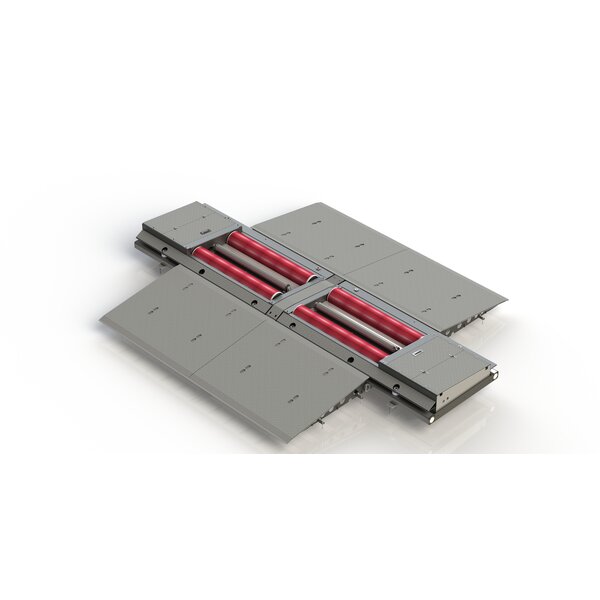

C_MBT T 18.0 W360 VP 410213

product details / scope of delivery

Description:
Digital roller brake tester for agricultural vehicles
and special vehicles up to 18 t axle load
with 2 x 11 kW drive motors

Particularly suitable as stand-alone tester
in the agricultural sector due to large roller centre
distance and raised test rollers

• Features:
  • Real slip monitoring and automatic start-up delay as standard
  • Tyre-saving thanks to integrated automatic start-up monitoring
  • Automatic slip switch-off with pointer stop and automatic restart
  • Static exit aid for safe and convenient exit, even when the test stand is switched off
  • Automatic switch-off after vehicle exit
  • Electronic, temperature compensated (neutral) strain gauge system
  • Internationally recognised TÜV report in accordance with VkBl 149/2021 (Germany)

• Further product advantages - for details see Sales Handbook:
  • Sturdy and solid design
  • Interface module in the floor assembly
  • Secure and digital data transmission
  • Modular control box set-up
  • Multi-flexible display possibilities
  • Simple start-up
  • Simple maintenance and service
  • Safe operation
  • Optimised calibration and adjustment
  • Integrated and expandable software and/or interfaces

Configuration:

• Split design as standard for pit installation or above-floor operation with optional ramps
• Dimensions offer optimum testing opportunities for all agricultural vehicles including trailers
• Very large roller axle distance for comfortable testing of oversized wheel diameters
• Clearly raised test rollers prevent jamming of low-pressure tyres on the test bench frame
• DC-Brake for comfortable vehicle exit with driven axles
• High-quality powder coating: anthracite grey, RAL 7016

Scope of delivery:

• Control box with integrated control unit
• Roller set T18.0 W360 with integrated interface module

Note:
The use of the C_MCD universal console (VP 186054) is
recommended for free-standing installation of the
above-floor test stand
