DUO CM 5.0 A VP 250238

product details / scope of delivery

• on-ground -

Description:

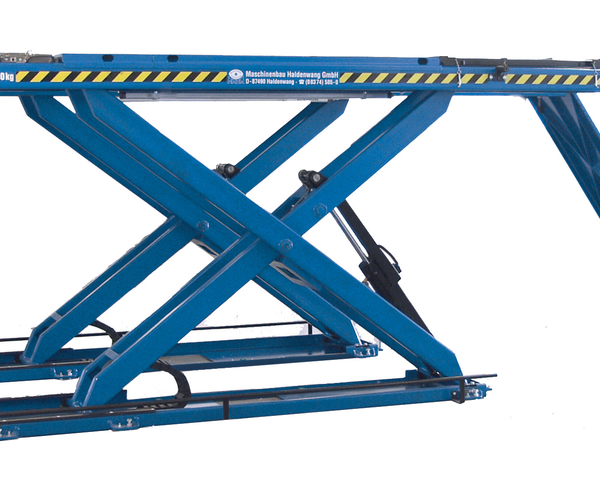

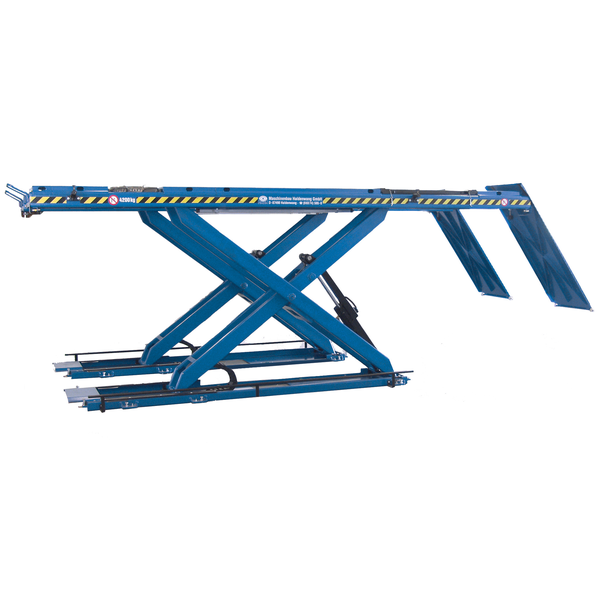

• Scissor lift for on-ground installation
• Very robust and well-established design with a high vehicle throughput and optimum service life in mind
• High lateral stability and bending strength, so also suited to precise wheel alignment
• Runways equipped with pre-integrated guide rail for axle lift
• Latches and cylinder racks as extra safety feature
• Cables and hydraulic hoses installed safely within scissor pipes
• An elevated lifting height in excess of 2.1 m makes repair works and access easier
• EMERGENCY OFF function in the case of power failure
• Additional anti-corrosion treatment of lock seams
• Varnished with high-quality powder coating:
  • Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Base frame)
  • Window Grey, RAL 7040 (Scissors, Control Desk)

• Automatic synchronisation of runways and the optional wheel-free jack
• Protected within the lifting cylinders, the maintenance-free integrated displacement measurement encoder ('linear-absolute measuring system') eliminates the need for light barriers for synchronisation monitoring and electric switches for lift heightdetection
• High level of safety due to immediate switch-off in case of (one-sided) collision with obstacle at minimum height difference
• Crushing and shearing protection due to CE stop
• Stops automatically upon rising to desired lifting height with custom programmable breakpoint
• Robust membrane keyboard

• Double latch option for wheel alignment for additional stability within the scissors arm (not possible in conjunction with wheel-free jack)
• DUO-SPEED option for short lifting / lowering times

Scope of delivery:

• Scissor lift, type: DUO CM 5.0 A
• Operation desk with control and hydraulic unit
• Lockable main switch
• Cover plates for cables and hydraulic hoses
• 2 long drive-on ramps, 2roll bars
• 2 pneumatic quick-action couplings installed on runway
• 8 rope loops to be used as a transport aid
• Operating manual and test log
• EC CE declaration of conformity
• Transport packaging
