SKM 2 VP 185051

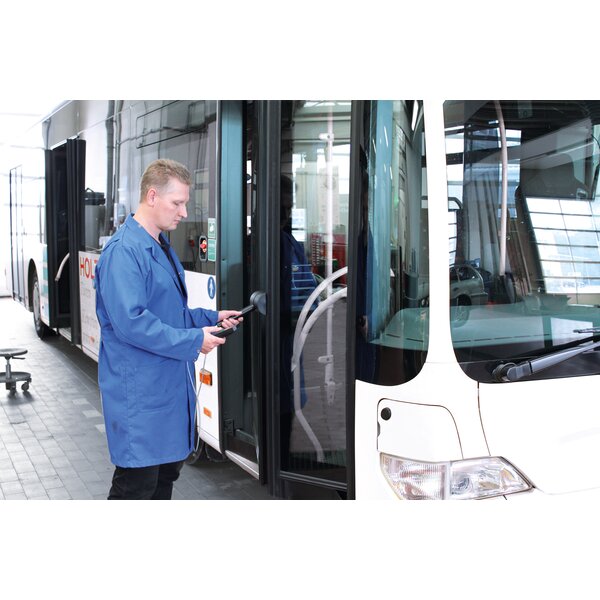

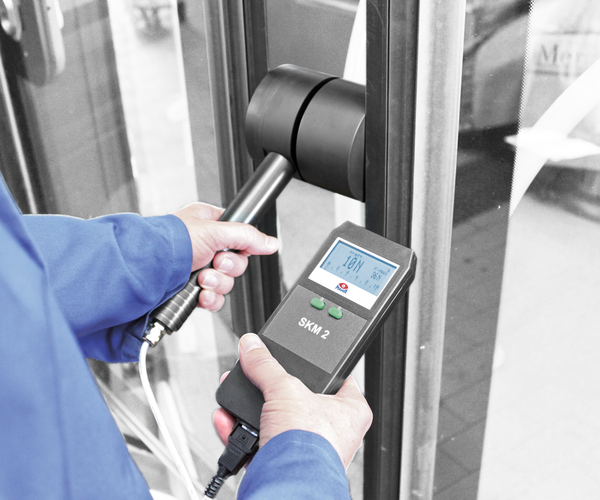

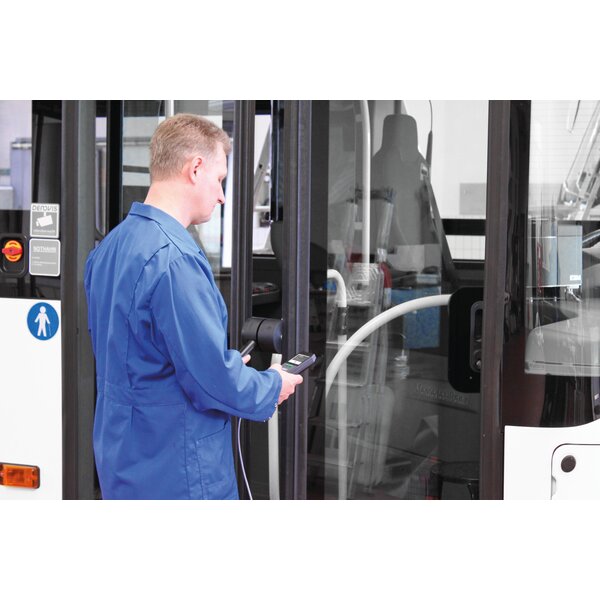

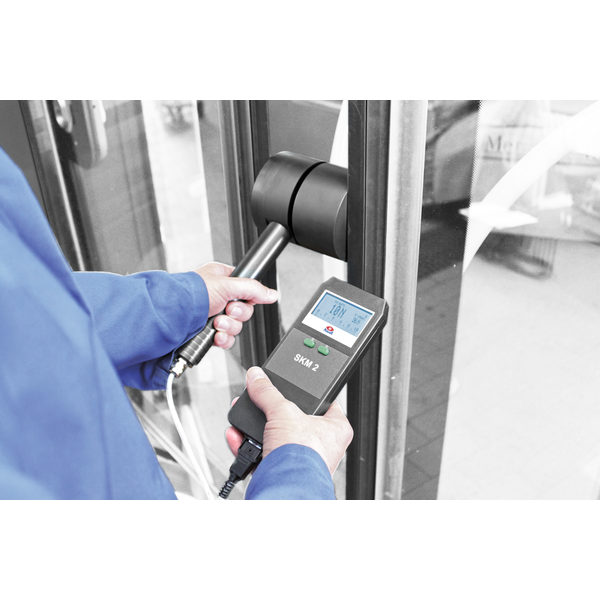

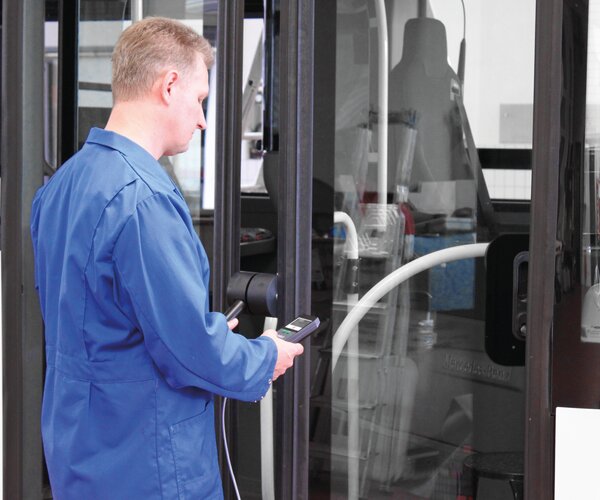

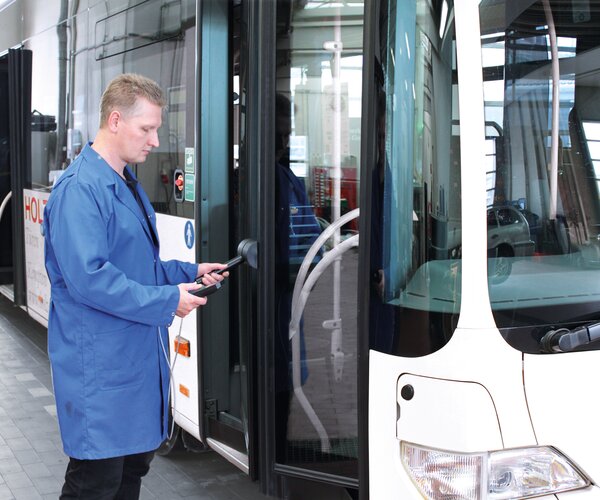

The measuring device SKM 2 serves for the comfortable and safe determination of the clamp force of power-operated service doors and closing mechanisms. It allows the definition of the effective force (Fe) as well as the peak force (Fp) and meets the requirements according to s. 29 German Road Traffic Licensing Regulations (StVZO) as well as Directive 2001/85/EC. The SKM 2 is equipped with a hand terminal including an illuminated LCD for measurement value display.

product details / scope of delivery

Description:

  • Measurement of the closing force of power-controlled doors
  • Meets the requirements stipulated in directive 2001/85/EC
  • Measurement of effective force (Fe) and peak force (Fs)

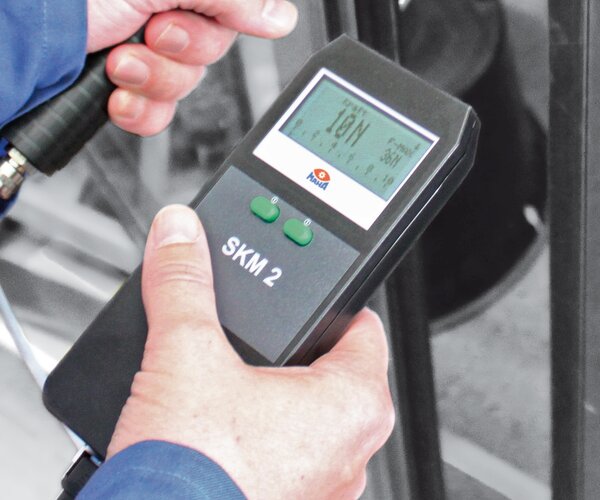

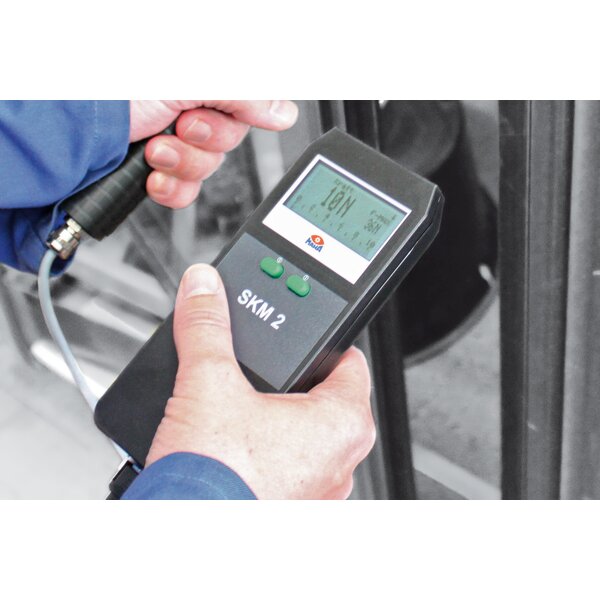

  • Hand terminal w. illuminated LCD
  • Battery-supplied, network-independent operation
  • Including plug-in charger

Downloads

Sales documents

Technical Datasheet
Technical Datasheet SKM 2
DE EN
Technical Datasheet (Printable version) SKM 2
DE EN

Technical documentation

Operating Instructions
Operating Instructions SKM 2
DE EN

Technical Data

Technical data:

Measuring range0 - 995 N
Accuracy+/- 10 N
Temperature range+ 5...+ 40 °C
Height of measuring cell115 mm
Diameter of measuring cell100 mm
Display resolution64 x 128 pixel
Supply voltage of internal NiMh battery6 V; 700 mA
Supply voltage ofpower supply unit230 V AC/ 12 V DC
Weight including handling boxapprox. 3.5 kg
