product details / scope of delivery
- Very smooth running due to electro-mechanical drive system
- High efficiency thanks to smooth-running, low-maintenance ball screw
- 5-year warrantee for entire spindle drive
- Excellent lifting column mechanical rigidity guarantees safety and function under any conditions
- Precision-height positioning without overrun thanks to high-quality worm gear motor

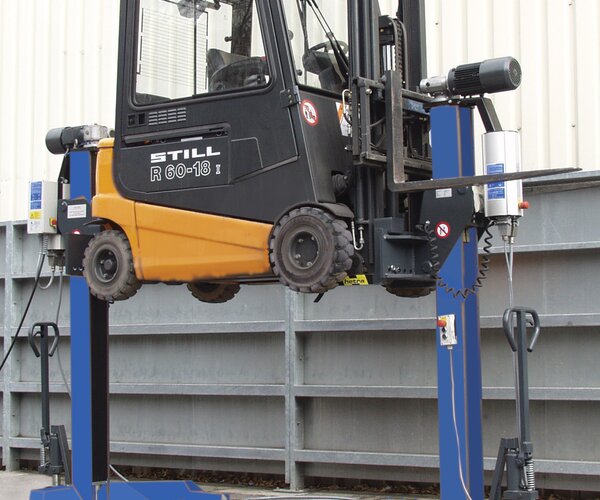

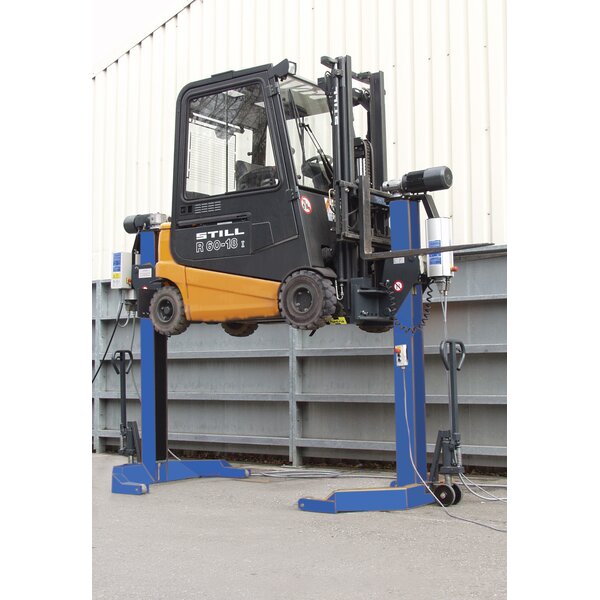

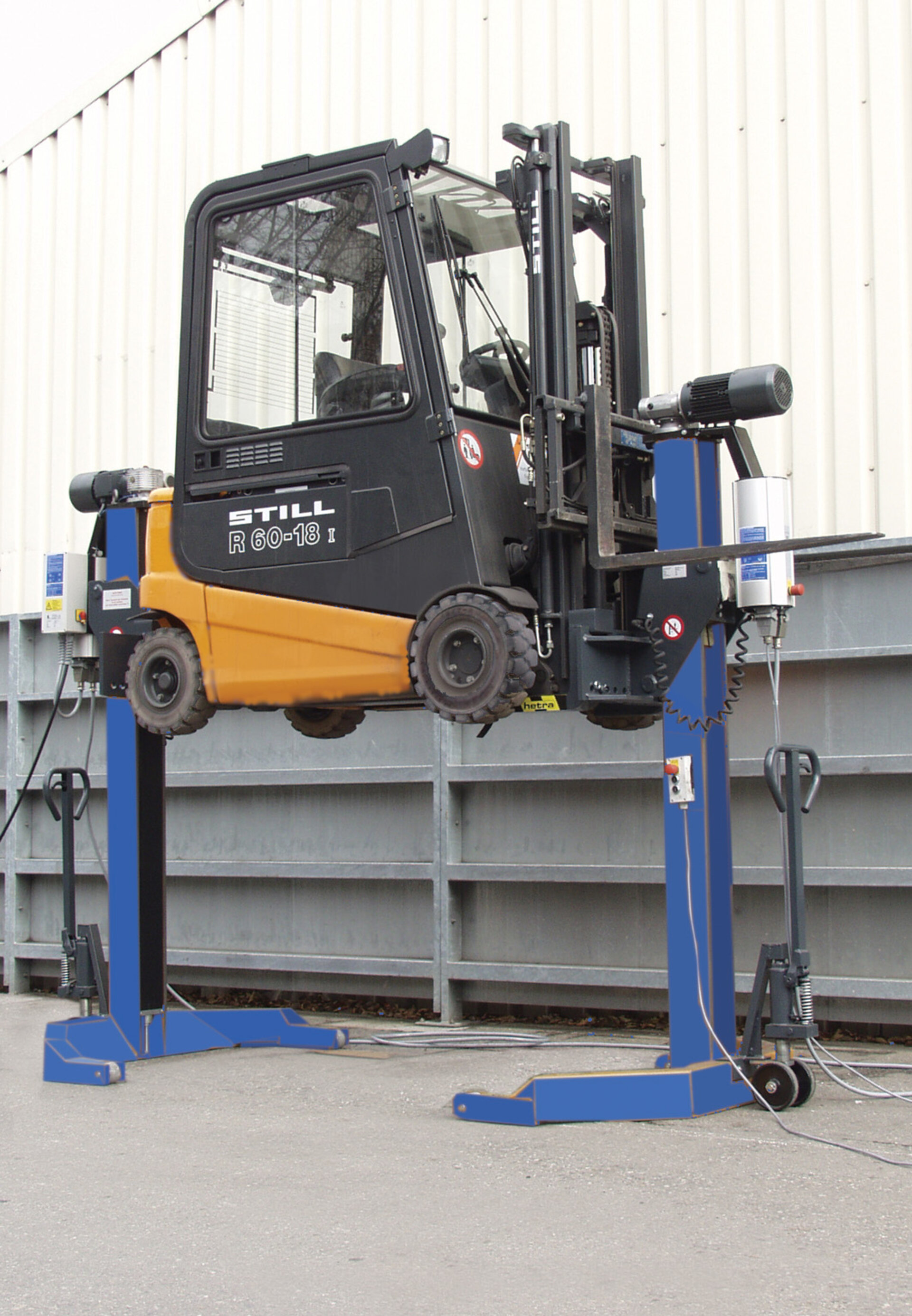

- Universal lifting carriages with movable holder prongs specially for forklift trucks and special-purpose vehicles
- Overhead drive unit creates even more space in the work area
- Workshop-robust and splash-proof control unit
- Wear-free and easy-to-use membrane keypad
- Flexible column positioning thanks to excess-length connection cables, guaranteeing suitability across all vehicle categories
- User convenience with panel operator controls on each individual column
- High level of flexibility in use due to different operating modes
- Group and individual columnoperating modes enable quick and easy replacement of wheel and axle suspensions
- Microprocessor control and CAN bus-supported monitoring of movement synchronisation and all safety functions
- Utmost safety thanks to mechanically independent locking device
- Simple emergency lowering for power failure included as standard
- System can easily be expanded with up to six columns
- Universal holder can be exchanged for wheel support claws
- Streamline COLUMNLIFTdesign aids manoeuvrability specifically in workstations with restricted space
- High-quality powder coating:
- Window Grey, RAL 7040 (Columns)
- Anthracite, Grey RAL 7016 (Lifting carriages)
Scope of delivery:
- 2 individual mobile columns
- 1 connecting cable (10m) with plug and socket
- 1 mechanical dolly, repositionable
Technical Data
Technical data:
| Load capacity CE per column | 7500 kg |
| Drive power per column | 1.5 kW |
| Weight per column | 502 kg |
| Lifting distance | 1750 mm |
| Raising/lowering time | 113 s |
| Supply voltage | 3/N/PE 400 V 50 Hz |
| Protection rating | IP 54 |
