R 200/2 divided VP 430004

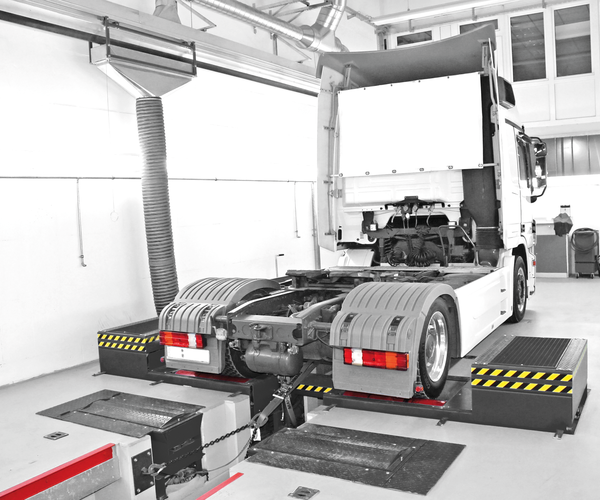

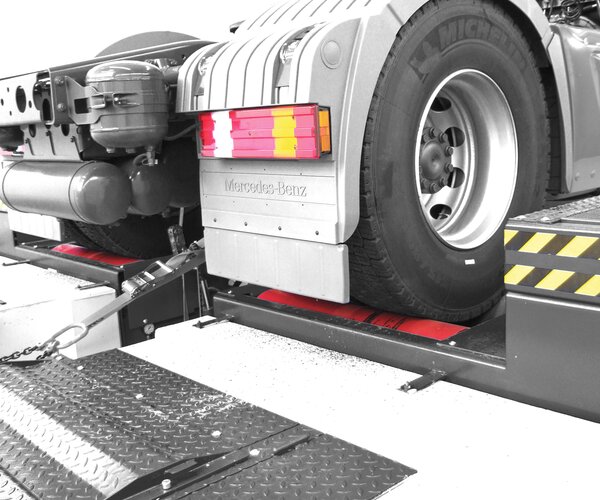

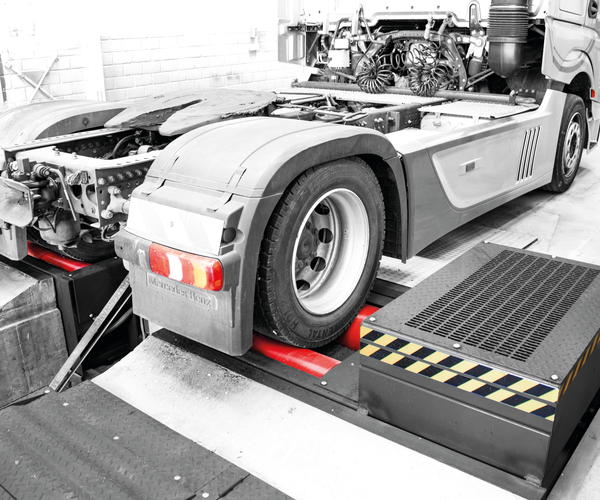

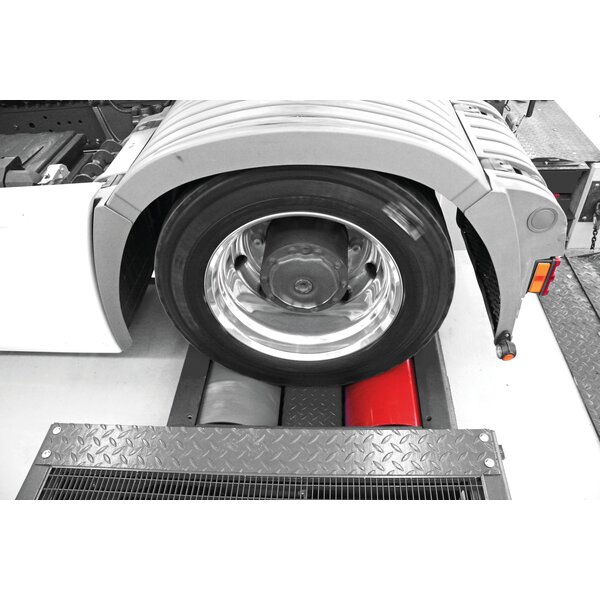

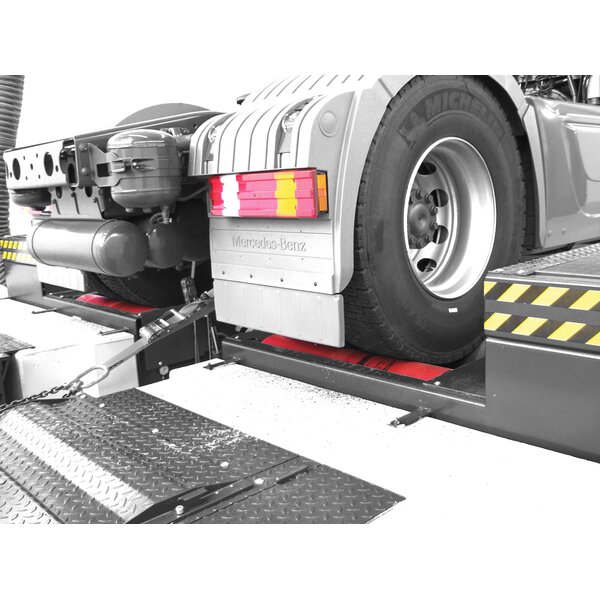

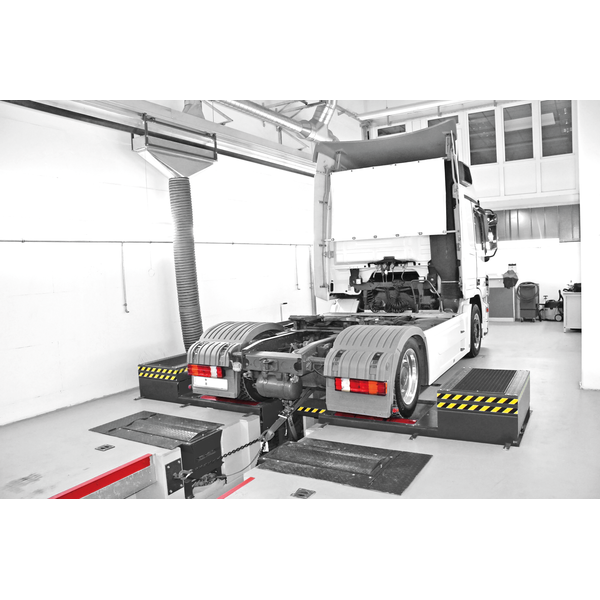

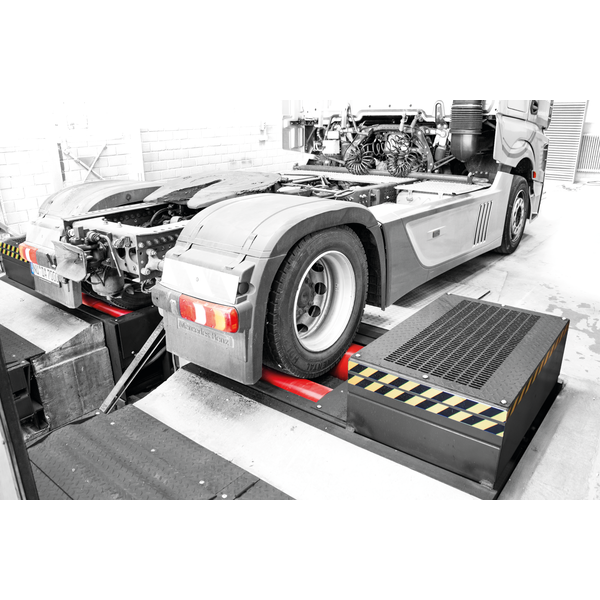

The double roller dynamometer R 200/2 DIVIDED with an eddy current brake on each roller set and pneumatic lifting beam is designed to measure the performance of trucks and stands out due to its extremely robust, durable and low-maintenance construction. The R 200/2 ensures highest measuring accuracy due to the power measurement at a constant rpm, speed or tractive force, including the towing power measurement. For tuning and adjustment tasks the load simulation is evaluated graphically. An extension up to a wheel power of 660 kW is optionally possible.

product details / scope of delivery

Description:

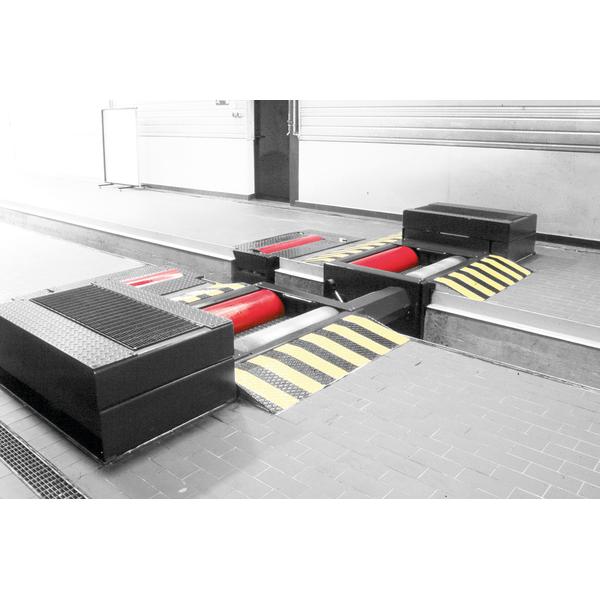

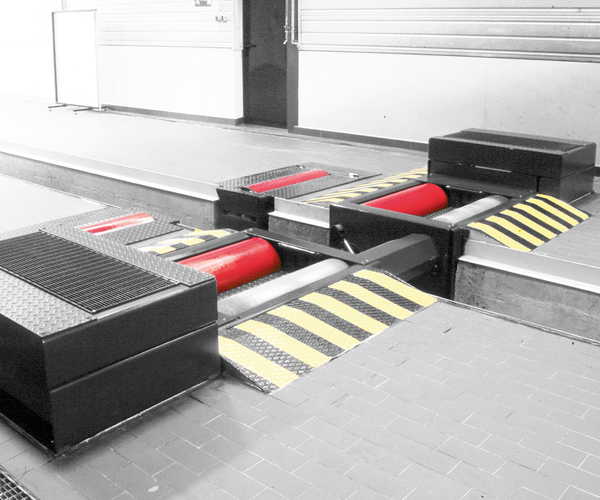

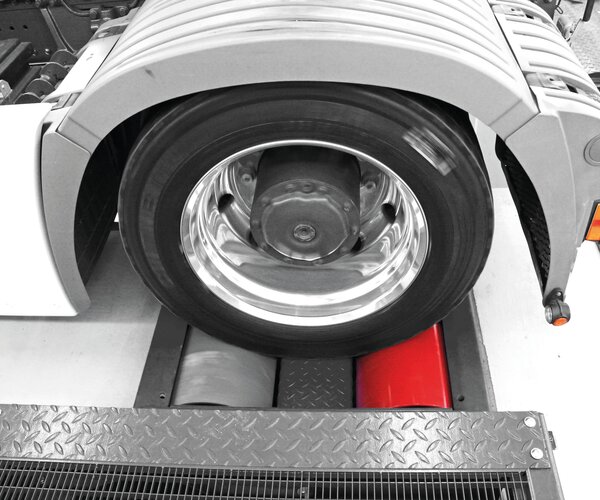

  • Self-supporting split roller set for improved accessibility while pulling down the vehicle
  • Hydraulic lifting bar
  • Cardan shaft for connecting both load rollers
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016 (dynamometer frame, covers)
  • Wet-coated load roller, ruby red, RAL 3003

Downloads

Sales documents

Brochures
Brochure POWERDYNO
DE EN ES FR
Brochure (Printable version) POWERDYNO
DE EN ES FR
Technical Datasheet
Technical Datasheet R 200/2 geteilt
DE EN
Technical Datasheet (Printable version) R 200/2 geteilt
DE EN

Technical documentation

Operating Instructions
Operating Instructions LPS 3000
DE EN

Technical Data

Technical Data:

Axle load15000 kg
Max. electric eddy-current brakes2 × 150 kW
Dimensions per roller set (L x W x H)2260 x 1100 x 865 mm
Weightapprox. 2500 kg
Min. track1000 mm
Max. track2800 mm
Smallest testable wheel diameter500 mm
Roller diameter318 mm
Power supply3/N/PE 400 V 50 Hz
gG fuse63 A
Max. test speed200 km/h
Max.wheel power300 kW
Max. wheel power (optional)660 kW
Max. tractive force15 kN
Measurement accuracy
Wheel power measurement+/- 2% from measured value
Packaging dimensions (L x W x H)4700 x 1300 x 1300 mm
Weight including packagingapprox. 2800 kg
